Connecting Rod Balancing Tolerances: OEM vs Race (What You Should Aim For)

Balancing connecting rods isn’t just about matching total weight — it’s about controlling big-end and small-end variation within a defined tolerance range. But what tolerance is “good enough”? And how does the target range change between an OEM street engine and a high-RPM race engine?

This guide breaks down realistic, engine-builder-approved tolerances for different types of builds so you know exactly what you should (and shouldn’t) chase.

For the full balancing workflow, see the Complete Connecting Rod Balancing Guide.

Why Tolerances Matter More Than Absolute Weight

Absolute rod weight doesn’t matter much.
What matters is variation between rods — especially:

• big-end rotating mass

• small-end reciprocating mass

Even a gram of variation can introduce vibration at high RPM, while tighter balance improves smoothness, reduces bearing wear, and increases engine longevity.

OEM Tolerances (What Factory Engines Typically Have)

Most factory engines are balanced to surprisingly loose tolerances because:

• They’re designed for low to mid RPM

• NVH tuning masks minor imbalance

• Warranty engines prioritize cost over perfection

Typical OEM rod variation:

• Total weight: ±1–4 g

• Big-end: ±1.5–3 g

• Small-end: ±0.5–2 g

Many factory rod sets are not matched at all beyond broad ranges.

But you, as a builder, can do better.

Performance Street Engine Tolerances

For a quality enthusiast build (turbo K-series, LS, EJ, JZ, etc.), aim for:

• Total: ±1 g

• Big-end: ±0.5–1 g

• Small-end: ±0.5–1 g

This level delivers noticeably smoother high-RPM operation while remaining achievable with a digital scale and a proper balancing jig.

For DIY builders, the easiest tool for capturing these numbers accurately is the 3D-Printed Connecting Rod Balancing Jig.

Race Engine Tolerances

High-RPM engines, time attack builds, road race engines, and boosted drag setups benefit from tighter control.

Recommended:

• Total: ±0.5 g

• Big-end: ±0.2–0.5 g

• Small-end: ±0.2–0.5 g

This range requires:

• Consistent technique

• Accurate measurement

• Even material removal

But it’s absolutely achievable at home with the right workflow.

Extreme / High-RPM Tolerances (8k–10k+ RPM)

For professional-level or extreme RPM builds:

• Total: ±0.1–0.2 g

• Big-end: ±0.1–0.2 g

• Small-end: ±0.1–0.2 g

This is “machine shop level,” but a surprising number of DIY builders now hit this level using:

• a 0.01 g scale

• a very stable balancing jig

• slow, even material removal

This is where measurement accuracy matters more than the tool’s price. A consistent height reference and a stable fixture make the biggest difference — both strengths of the 3D-Printed Rod Balancer Jig.

Where You Should and Shouldn’t Remove Material

It’s important to use only non-structural exterior surfaces for adjustment.

Big End – Remove from:

• the exterior of the connecting-rod bolt bores, evenly

Avoid:

• the beam

• the bearing tang areas

• the big-end bore surface

Small End – Remove from:

• the exterior of the wrist-pin bore, evenly

Avoid:

• the wrist-pin bore surface

• the bushing

• the beam

Evenness matters more than the amount.

**Is Zero Variation Required?

Short answer: no.**

There’s no practical benefit to chasing absolute perfection.

What matters is:

• consistency

• even weight distribution

• confidence in your measurements

In most cases:

• ±0.1–0.5 g is the “sweet spot”

• You’ll never feel the difference beyond that

• The engine definitely won’t care beyond that

Once you hit your target, stop grinding.

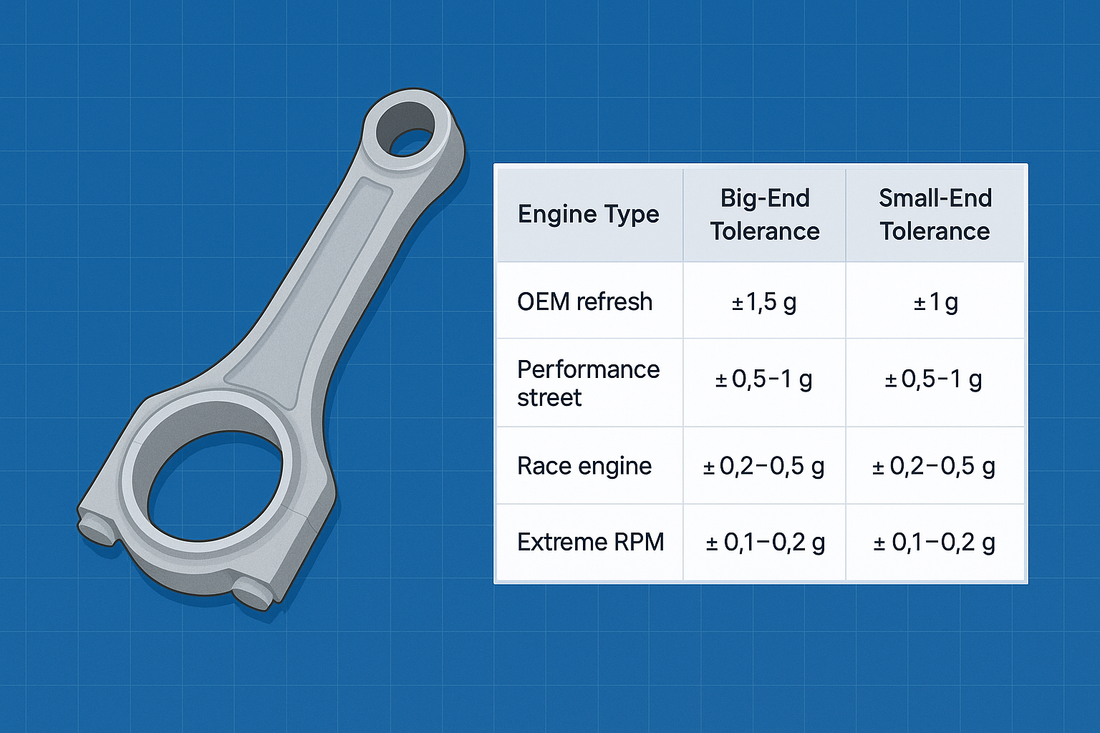

Recommended Targets by Engine Type

This is an easy cheat sheet you can include with your build notes.

Final Thoughts

Knowing the correct balancing tolerances helps you avoid overdoing it while still getting genuine performance benefits. Whether you’re freshening a stock engine or building a high-revving race motor, the right tolerance target keeps the engine smooth, durable, and predictable.

If you want an accurate and affordable way to measure rod ends down to 0.1 g or better, the 3D-Printed Connecting Rod Balancing Jig makes the process simple and repeatable for DIY builders.
