How to Balance Connecting Rods: Complete Engine Builder’s Guide

Balancing connecting rods used to be something only machine shops with $300–$800 specialty fixtures would attempt. But today, with accurate digital scales and affordable jigs, DIY engine builders can reliably achieve ±0.5 g tolerances at home — the same level many professional shops aim for. This step alone can dramatically improve engine smoothness, high-RPM stability, and long-term durability, even on stock bottom ends.

Rod balancing is often overlooked in DIY engine builds, not because it’s unimportant, but because it seems complicated. In reality, it’s one of the most accessible forms of precision engine machining you can perform at home, and it pays dividends in reliability and performance no matter what engine platform you’re working on.

If you're deciding whether balancing is necessary for your build, see Do You Really Need to Balance Connecting Rods?.

Table of Contents

• Why Rod Balancing Matters
• Understanding Rod Weight
• Tools Required
• What Tolerances to Target
• How to Measure End Weights
• Step-by-Step Balancing Procedure
• Where to Remove Material
• Common Mistakes
• Expected Results
• Why 3D-Printed Fixtures Work So Well
• Final Thoughts

Why Connecting Rod Balance Matters

Connecting rods operate under extreme dynamic loads. As RPM increases, rod forces multiply exponentially, and even a small imbalance can translate into significant stress on the crankshaft, bearings, block, and rotating assembly. This imbalance is especially noticeable in high-RPM engines like Honda K-series, B-series, LS V8s, EJ boxers, and JZ inline-6 engines.

Imbalance causes:

• Increased vibration — the crankshaft must fight rotating mass differences.
• Uneven rod and main bearing loads — heavy rods create localized bearing pressure spikes.
• High-RPM instability — noticeable near redline as harmonics stack.
• Reduced engine life — imbalance accelerates wear on crucial bearing surfaces.

For more detail on how imbalance stresses bearings, see Rod Imbalance & Bearing Life.

Even small differences in end weight cause additional vibration energy that the crankshaft must absorb. Over time, this increases crankshaft flex, heats bearings, and contributes to metal fatigue. This is especially true on boosted, high-compression, or track-driven engines that spend long periods at elevated RPM.

Balanced rods improve throttle response, reduce vibration, and increase bearing longevity. On engines that regularly see 7500–9000 RPM, proper rod balancing is not optional — it is a foundational step in engine building.

Understanding Rod Weight: Total, Big-End, and Small-End

A connecting rod is not a single mass. It’s divided into two functional masses that behave very differently inside the engine:

Big-End Weight (Rotating Mass)

This portion of the rod rotates 360 degrees with the crankshaft. Because it is in constant rotation, even a 1–2 gram difference creates substantial centrifugal force at high RPM, leading to crankshaft vibration, main bearing overload, and loss of oil film stability.

Signs of rotating mass imbalance:

• Vibration increasing with RPM
• Main bearing wear patterns appearing uneven
• Crankshaft “whip” at high RPM
• Knock sensor false-triggering due to vibration

Small-End Weight (Reciprocating Mass)

The small end travels up and down with the piston and changes direction twice per crank revolution. This makes its behavior far more violent than the big end. Small-end imbalance disturbs piston motion and is directly linked to piston slap, skirt wear, and high-RPM harmonic instability.

Issues caused by small-end imbalance:

• Unstable ring seal
• Piston noise or skirt wear
• Vertical vibration transmitted into the block
• Reduced piston acceleration symmetry

For a deeper breakdown, see Big-End vs Small-End Weight Explained.

Tools Required (DIY to Professional)

You don’t need machine-shop equipment to do this correctly. Consistency matters far more than tool price.

Budget Setup (<$50)

• Kitchen scale (0.1 g resolution)
• 3D-printed rod balancing jig

This setup is enough for the majority of street and performance builds and can achieve repeatability within ±0.2–0.5 g.

Free frictionless alternatives: DIY Rod Balancer Methods (Chain Method)

Mid-Range ($100–$200)

• 0.01 g lab-grade scale
• Aluminum balancing stand

This setup minimizes scale drift and improves sensitivity for high-end builds.

Pro-Level ($300+)

• Machined steel balancing fixture
• Certified industrial scale

These tools excel in repeated use but offer relatively small accuracy improvements compared to a well-designed printed jig.

Full comparison: Best Rod Balancing Tools

To understand what a rod balancer actually does: What Is a Rod Balancer?

What Tolerances Should You Target?

The required tolerance depends on your usage:

Build Type	Tolerance
OEM street	1–4 g
Performance	≤1 g
Race engines	≤0.5 g
High-RPM / Extreme	0.1–0.3 g

More detail: Connecting Rod Balancing Tolerances

Most experienced builders aim for ≤0.5 g on the big end and ≤0.5 g on the small end. Going tighter is possible, but removing too much material can weaken the rod unnecessarily.

How to Measure Big-End and Small-End Weight

To measure rod end weights, you must isolate one end at a time. This requires a fixture that:

• Holds one end of the rod at a consistent height
• Prevents friction or drag
• Keeps the rod perfectly level
• Positions the weighing end flat on the scale

Friction or inconsistent support height can cause weight variations of 0.5–1.0 g — enough to mislead your balancing efforts.

The easiest reliable tool: 3D-Printed Connecting Rod Balancer Jig.

This type of fixture replicates the geometry used in $300+ machined stands but costs a fraction of the price. When paired with a stable digital scale, you can achieve surprisingly precise and repeatable results.

Step-by-Step Balancing Procedure

1. Measure Total Weight

Weigh each rod and create a chart. This provides a baseline and helps determine how much material you will need to remove.

2. Measure Big-End Weight

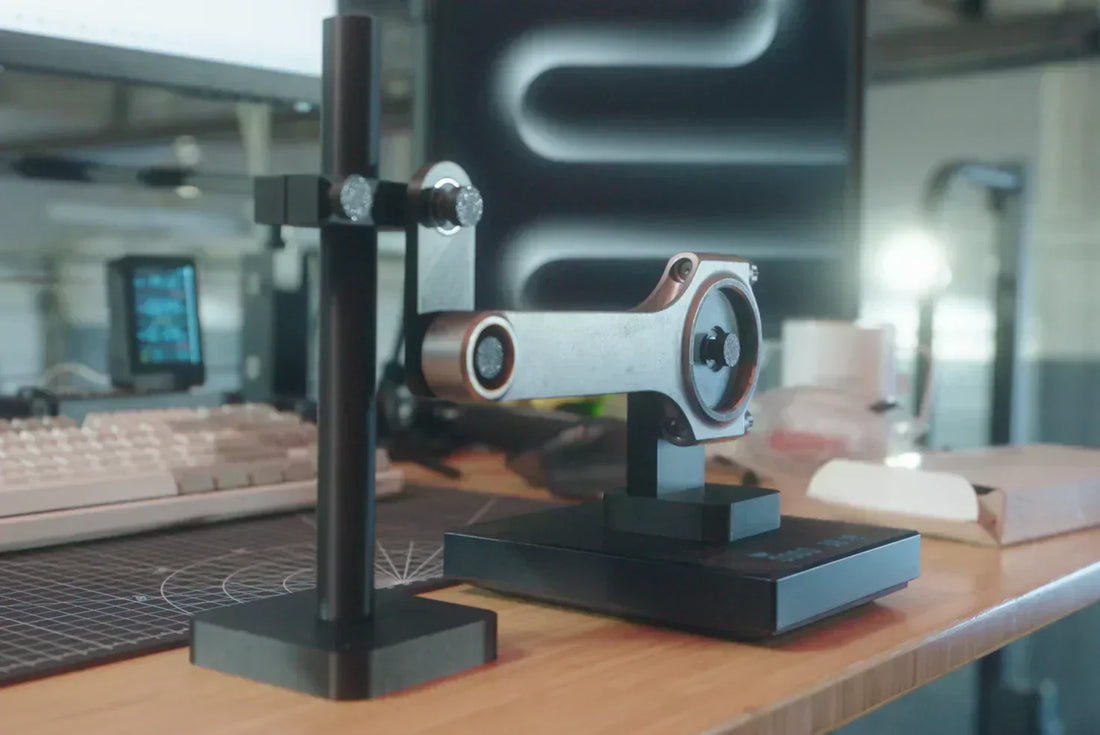

Support the small end on the fixture, place the big end fully on the scale, and record the reading. Repeat this measurement two or three times to confirm consistency.

3. Measure Small-End Weight

Reverse the rod: support the big end and place the small end on the scale. Again, repeat for accuracy.

4. Identify the Lightest Rod

The lightest rod becomes your target. You never add weight — you always remove weight from the heavier rods to match the lightest one.

5. Remove Material Carefully

Only remove material from:

• Big end: exterior around the rod bolt bores
• Small end: the exterior of the wrist-pin bore

Avoid grinding beams, bores, bushings, or any structural area not designed for weight adjustment.

6. Re-Measure Frequently

Remove material in very small increments. Check big-end and small-end weight after each adjustment. Repeat until all rods match your target range.

Common Mistakes

• Grinding structural areas (dangerous)
• Using a scale with poor resolution
• Not keeping the rod perfectly horizontal
• Overshooting weight removal
• Not rechecking total weight
• Using dull knife-edge balancers (high friction)

Full list: Common Connecting Rod Balancing Mistakes

Expected Results (Before & After)

Example OEM set:

Rod	Total	Big End	Small End
1	536.1	382.5	153.6
2	538.4	383.9	154.5
3	537.2	382.4	154.8
4	540.7	385.7	155.0

After balancing:

• Total: 537.0 ±0.2 g
• Big end: 382.5 ±0.2 g
• Small end: 154.5 ±0.2 g

These results are fully achievable with a budget or mid-range setup. Professional shops routinely aim for the same tolerances.

Why 3D-Printed Fixtures Have Become the Standard

Modern 3D-printed rod balancing fixtures provide:

• High measurement stability
• Low friction for consistent readings
• No scratching or marking of rods
• Precision geometry matching metal fixtures
• Incredible cost efficiency
• Compatibility with any digital scale

They offer 90–95% of the performance of a $400 billet tool for under $10, making them the best value in the industry for DIY builders.

Final Thoughts

Rod balancing is one of the best-value steps in engine assembly. With a digital scale, a fixture, and some patience, you can achieve machine-shop-level precision at home. Balanced rods reduce vibration, extend engine life, and improve high-RPM performance.

If you want a tool designed specifically for DIY builders: Connecting Rod Balancer Jig (3D Print).
