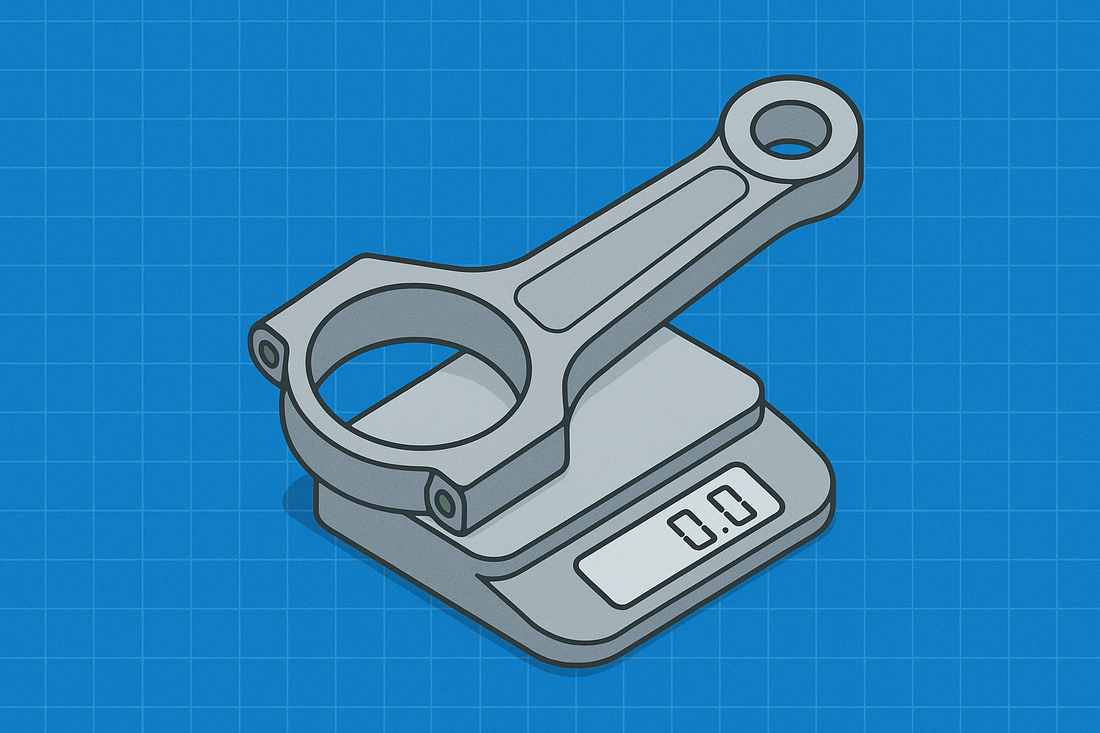

What Is a Connecting Rod Balancer? (Explained Simply)
Jason LiuShare
A connecting rod balancer is a tool used to measure the big-end and small-end weight of a rod separately. This allows engine builders to match all rods in a set so they produce identical forces during rotation and reciprocation.
Balancing rods improves engine smoothness, bearing life, and high-RPM stability—and it’s a surprisingly accessible process for DIY builders.
For full balancing instructions, see the
Complete Connecting Rod Balancing Guide.
What a Rod Balancer Actually Does
A rod balancer isolates one end of the rod at a time:
-
The big end is weighed while the small end is supported
-
The small end is weighed while the big end is supported
This gives you two numbers:
-
Big-end weight → the rotating mass
-
Small-end weight → the reciprocating mass
These measurements tell you how much material (if any) needs to be removed to match rods perfectly.
Why Rod Balancers Exist
Connecting rods do not act as one single mass inside the engine.
-
The big end rotates around the crank journal
-
The small end moves up and down with the piston
Because each end behaves differently, they must be weighed separately.
If you only match total weight, you can still have:
-
Uneven rotating mass
-
Uneven reciprocating mass
-
Vibration
-
Hot spots on rod bearings
-
Accelerated engine wear
A rod balancer prevents those problems.
Types of Rod Balancers
There are four common types of rod balancers used today.
1. Modern 3D-Printed Rod Balancers (Best for DIY)
These fixtures hold one end of the rod at a precise height while the other end sits on a scale.
They offer:
-
Extremely consistent geometry
-
Low friction
-
Repeatability within ±0.1 g
-
Massive cost savings over metal fixtures
The 3D-Printed Connecting Rod Balancer Jig is the best example of this new category.
2. Professional Machined Metal Rod Balancers
Traditionally used in machine shops:
-
Made of billet aluminum or steel
-
Very heavy and stable
-
Extremely accurate
They cost $300–$500+, which is why DIY builders prefer printed versions.
3. Chain/Suspension Balancers (Free DIY Method)
One end of the rod is hung from a string or chain and the other end is weighed.
This can be very accurate if and only if the rod is:
-
Perfectly horizontal
-
Completely free of friction
-
Not swaying
A bubble level is required for correctness.
4. Knife-Edge Balancers (Older Technology)
These suspend the rod on two sharp edges.
Downsides:
-
Friction
-
Edge wear
-
Poor repeatability
-
Easily outperformed by modern methods
They still work, but better alternatives exist.
How a Rod Balancer Works Step-by-Step
1. Level and zero the scale
Ensure the scale is warm, level, and stable.
2. Support one end of the rod
This can be via a fixture, stand, or string.
3. Weigh the opposite end
Place that end gently onto your digital scale.
4. Reverse and repeat
Swap ends and record the second measurement.
5. Compare against your lightest rod
Always match all rods to the lightest one in the set.
How Rod Balancers Improve Engine Reliability
A proper rod balancer helps you:
-
Reduce vibration
-
Improve bearing life
-
Reduce crankshaft oscillation
-
Improve high-RPM smoothness
-
Prevent uneven piston loading
-
Stabilize oil film thickness
These benefits matter even for street engines—and especially for track, turbo, or high-RPM builds.
Do You Need a Rod Balancer for a Home Engine Build?
If the engine is anything more than a basic commuter rebuild, yes.
You need a rod balancer if:
-
You're increasing RPM
-
You're adding boost
-
You're installing aftermarket pistons or rods
-
You're building a track engine
-
You want engine smoothness and reliability
Balancing rods is one of the highest-value steps in engine assembly.
What Tool Should You Use?
For almost everyone, the best combination of accuracy, cost, and ease-of-use is a digital scale paired with a 3D-printed fixture.
The easiest option for DIY builders is:
3D-Printed Connecting Rod Balancer Jig
It delivers machine-shop accuracy for under $10.
