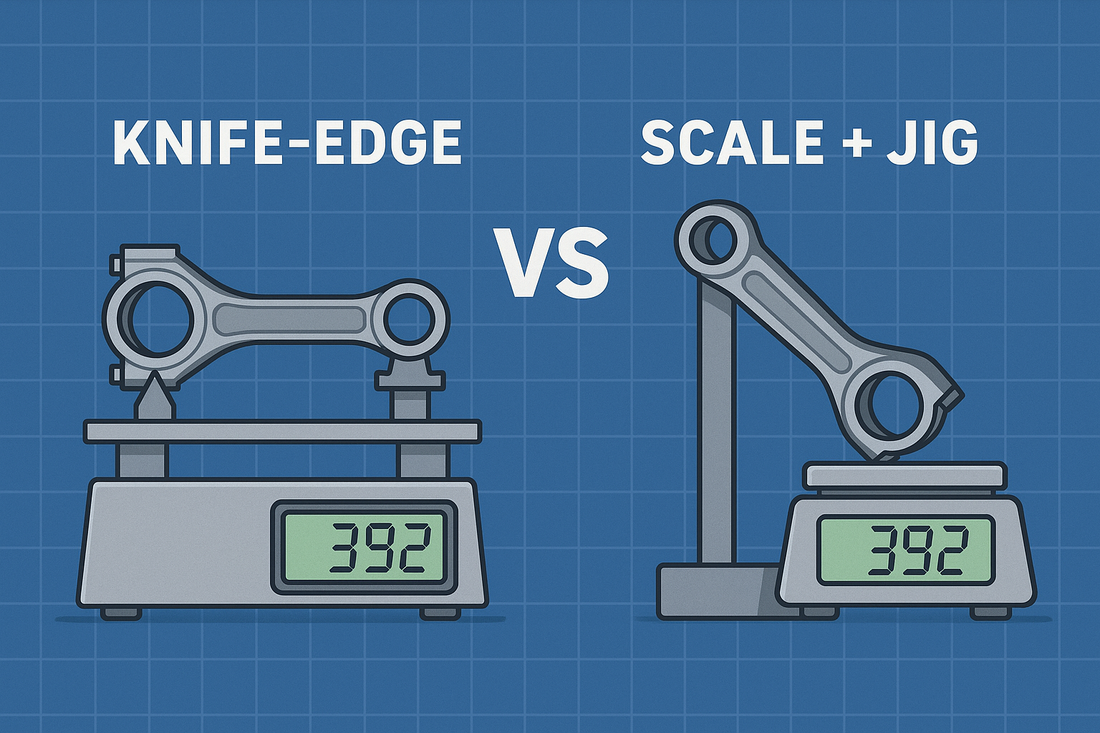

Knife-Edge Balancers vs Scale + Jig: Which Method Is Better for Rod Balancing?

For decades, engine builders have used knife-edge balancers to measure big-end and small-end rod weight. These tools suspend the rod on sharp “knife” pivots so one end can sit on a scale. Recently, many builders have shifted to modern scale + jig setups, especially as 3D-printed fixtures make the process more accessible.

So which method is more accurate?
Which is easier for DIY builders?
And which one gives the most consistent results?

Let’s compare the two approaches.

For step-by-step rod balancing, see the Complete Connecting Rod Balancing Guide.

What Is a Knife-Edge Balancer?

A knife-edge balancer suspends one end of the rod across two razor-sharp pivot points (“knife edges”). The opposite end rests on a digital scale.

Traditional setup:

• One end on knife edges

• Other end on the scale

• Rod must be perfectly level

• Unit must be calibrated

• Knife edges must be extremely sharp to reduce friction

These tools were standard in machine shops before affordable fixtures existed.

What Is a Scale + Jig Setup?

A scale + jig setup uses:

• A digital scale

• A precision fixture that holds one rod end at a consistent height

• The other rod end resting on the scale

This setup can be executed easily using the 3D-Printed Connecting Rod Balancing Jig, which emulates a $300 machined metal balancer.

Advantages:

• Consistent height reference

• No friction points

• No calibration

• No need for perfect knife-edge alignment

• Safer for the rod (no risk of burrs or scratches)

Accuracy Comparison

Knife-Edge Balancer

Accuracy depends on:

• Sharpness of the edges

• Friction

• Builder’s technique

• Perfect alignment

• Surface levelness

Small variations (0.1–0.5 g) can come from friction alone.

Scale + Jig

Accuracy depends on:

• Scale resolution

• Consistent end support

• Proper fixture geometry

Variation is typically 0.05–0.1 g or less when using a stable support fixture.

Winner: Scale + Jig
Much lower friction and far more repeatable results.

Ease of Use

Knife-Edge Method

• Harder to set up

• Sensitive to leveling

• Knife edges must be perfectly clean

• Heavy rods can shift or walk

• Slight tilt changes readings

Scale + Jig Method

• Drop the rod into the jig

• Read the number

• Flip rod, repeat

• Zero learning curve

Winner: Scale + Jig

Safety for the Rod

Knife-Edge

Rod edges can be scratched or dented if the rod slips.

Scale + Jig

Fully supported, no sharp edges touching the rod.

Winner: Scale + Jig

Repeatability (The Most Important Metric)

Engine balancing is about consistency. Even if a tool reads slightly off, it must read the same way every time.

Knife-edge balancers can drift as edges dull or friction changes.

Scale + jig fixtures provide:

• Same height

• Same angle

• Same geometry

• No friction forces

You can measure rods to within ±0.1 g repeatedly.

Winner: Scale + Jig

Cost Comparison

Knife-Edge Balancers

$150–$300 for quality units

Scale + Jig

$20–$40 for a good scale
$9.50 for a 3D-printed jig
(Or free to print if you already have a printer)

Total cost is 5–10× lower

Winner: Scale + Jig

Summary: Which Should You Use?

Knife-edge balancers had their place historically, but modern jig designs have surpassed them in every meaningful category.

If you're a DIY engine builder or machine-shop hobbyist, the scale + jig method is the clear winner.

For an accessible, accurate option, try the 3D-Printed Rod Balancer Jig, designed specifically for precision rod end measurements.
